Special Webbing Forged Master Link G80 51.5mm

Brand Name : LKY

Model Number : G80

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : Drop Forged Color Painted G80 Special Webbing Connecting Link

Material : Forged alloy steel

Surface : Hot dip galvanized, Color painted

Size : 37mm-51.5mm

Packing : Cartong + Pallet

WLL : 12.5T-20T

Contact Now

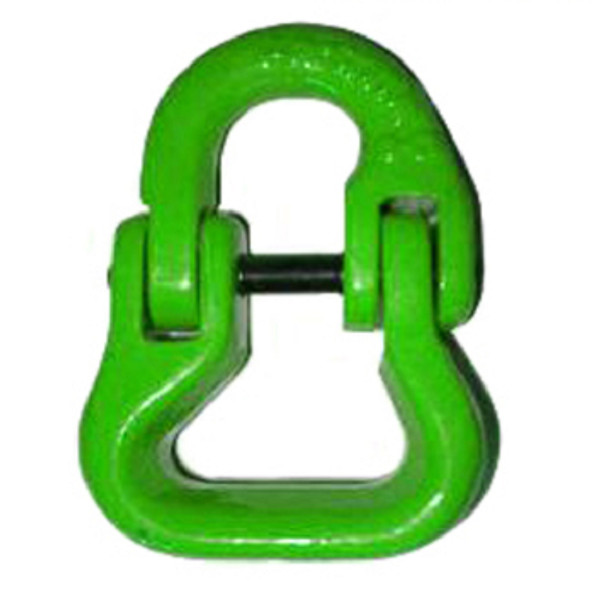

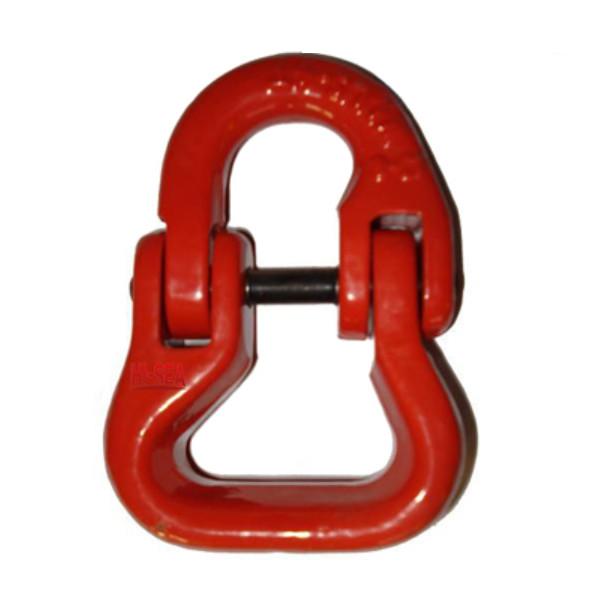

Drop Forged Color Painted G80 Special Webbing Connecting Link

G80 special webbing connecting link can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes. And its pulling force is very large, so it could be widely used in project hoisting mechinery, loading and unloading of port and railway and electric power equipment. Special specifications and marks can be made according to customers requirement

Product Details:

1. Item: G80 special webbing connectint link

2. Grade: G80

3. Material: Alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 12.5T-20T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 37mm-51.5mm

10. Special specifications and marks can be made according to customers requirement

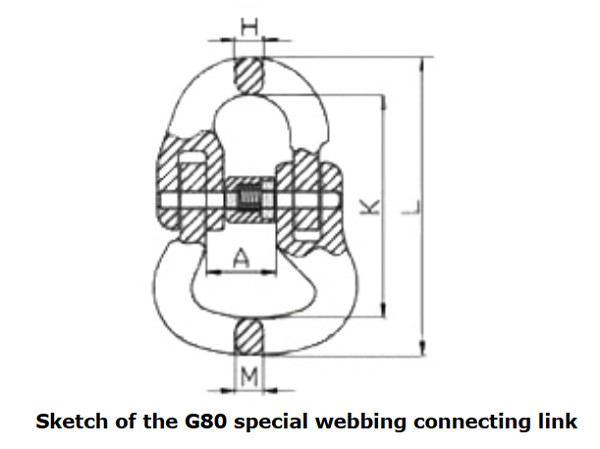

Specification:

WLL(T)	Weight(kg)	B.L(T)	A(mm)	H(mm)	K(mm)	L(mm)	M(mm)
12.5	3.1	50	37	20	186.5	246	26.2
15	4.55	60	48	25	205.5	273	28.2
20	6.1	80	51.5	30	231	306	33
