Color Painted Forged Master Link Pear Master Link 10mm To 38mm

Brand Name : LKY

Model Number : Pear Shape Link

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : Color Painted Forged Pear Shape Link

Material : Forged alloy steel, carbon steel

Surface : Hot dip galvanized, Color painted

Size : 10mm-38mm

Packing : Cartong + Pallet

WLL : Alloy steel: 3600lbs-54300lbs/ Carbon steel: 1800lbs-25000lbs

Contact Now

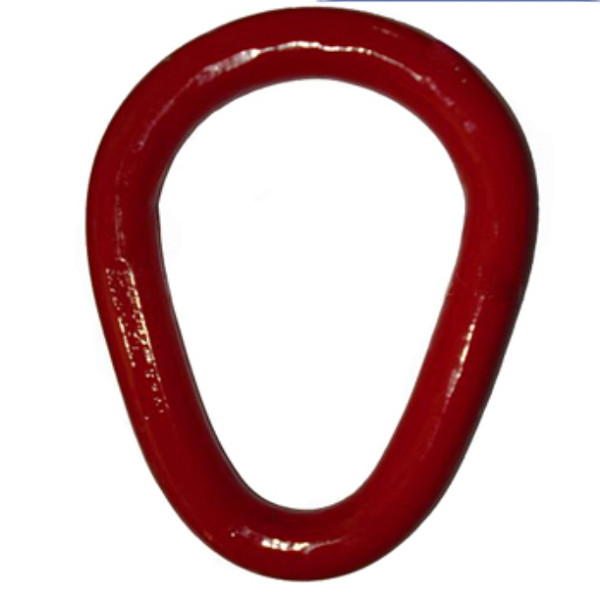

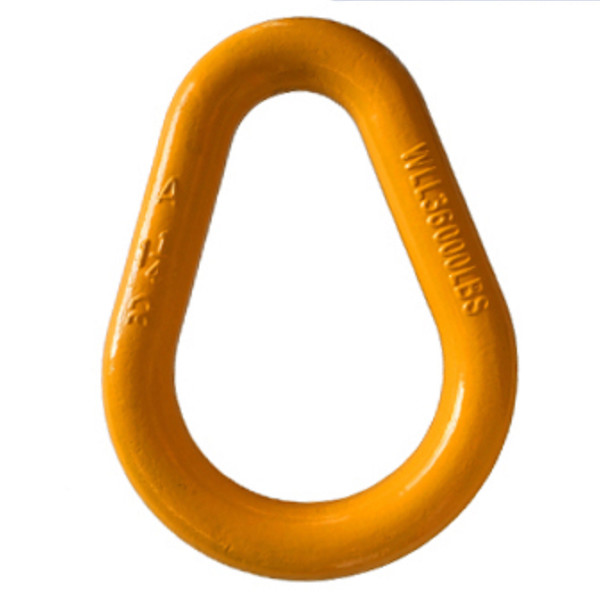

Color Painted Forged Pear Shape Link

The surface of the forged pear shape link is smooth, and without any defects of cracks, flaws and shape edges to damage wire rope. It is made of high quality carbon steel or forged alloy steel with heat treatment. It has the advantages of small volume, light weight and high strength. And the break load of it is 4 times of working load limited.

Product Details:

1. Item: Forged pear shape link

2. Grade: G80

3. Material: Forged alloy steel, carbon steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: Alloy steel: 3600lbs-54300lbs/ Carbon steel: 1800lbs-25000lbs

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 10mm-38mm

10. Special specifications and marks can be made according to customers requirement

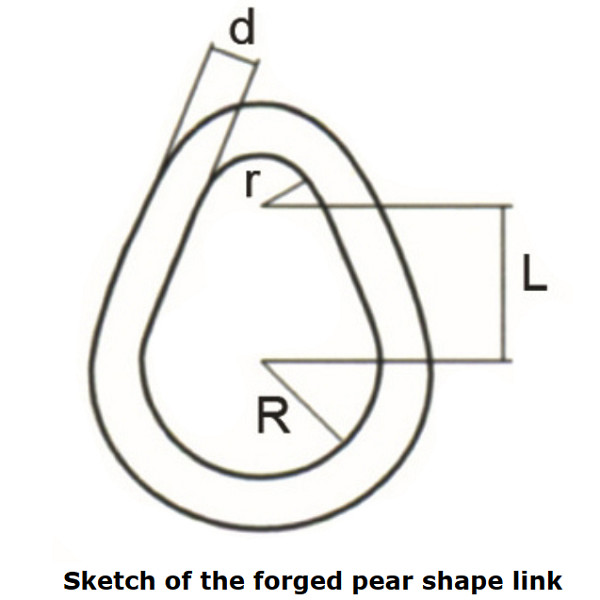

Specification:

Item	WLL(T)	d(mm)	R(mm)	r(mm)	L(mm)
HS-01	1	18	44	22	132
HS-02	2	20	44	22	132
HS-03	3	22	44	22	132
HS-05	5	26	52	26	156
HS-08	8	32	66	32	192
HS-10	10	36	72	36	216
HS-12	12	40	80	40	240
HS-16	16	45	90	45	270
HS-20	20	50	100	50	300
HS-25	25	53	112	56	336
HS-32	32	58	128	64	384
HS-40	40	63	140	70	420
HS-50	50	70	156	78	468

Color Painted Forged Master Link Pear Master Link 10mm To 38mm

Packing & Delivery

Color Painted Forged Master Link Pear Master Link 10mm To 38mm

Product Tags:

Forged Master Link 10mm

Color Painted Forged Master Link

pear master link 38mm
